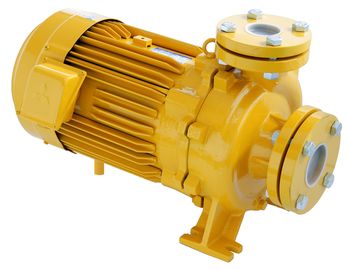

觢Ҵ˭ ( ˹Ź )
Series : WCM,WCL,WCLL,WCXL
Standardize Flange Type Series
( 7.5HP - 20HP )
觢Ҵ˭ Ѻ觹ӻҳҡлҹҧẺ˹Ź
㺾Ѵͧͧ Ѻٺ ѺҹҤɵá
Ҥصˡ ЧҹҸóٻҧ
DIMENSION 觢Ҵ˭


ԹҷǢͧ
WCM   WCH   WCL
MCH   觢Ҵ˭
SSH    SCM    SMH/SMM

觢Ҵ˭
觢Ҵ˭
Performance Range
- Power up to 15HP (11kW)
- Flow rate up to 1200 L/min
- Total Dynamic Head up to 76 m

Features
- 3 Phase 380-415V 50HZ Mitsubishi Electric two-pole induction motor conform
  with IEC 60034-1 and JIS C4210 standard totally enclised fan cooled type IP55 protection
  continuous rating with insulation class F
- Close coupled centrifugal pump single impeller manufacture
  regarding to DIN-24255 UNI 7457 norms
- Cast iron pump body with stainless steel (SUS304) shaft
- High grade Bronze casting impeller for highest durability with slurry water

Application
- Pricipally used for civil, industrial and agricultural applications where the most sturdiness
  and dependability is required


ǴԹ          俿     Թ               ͹               㺾Ѵǹ
˹á      |       Թ      |        ǡѺ      |               |               |        ᤵͤ       |        Դ
觢Ҵ˭
Ҥһ ԵٺԪ

Model


HP

KW

çѹ俿
( V )

()

ҳ
Ե/ҷ

͹
x

Ҥ
WCM-5505FT
7.5
5.5
380V
58 - 34.8
550
2 x 1 1/2
20,867 -
WCM-7505FT
10
7.5
380V
66.5 - 44
550
2 x 1 1/2
23,676 -
WCM-11005FT
15
11
380V
72.5 - 49.3
700
2 x 1 1/2
28,758 -
WCL-5505FT
7.5
5.5
380V
34 - 25
1100
2 1/2 x 2
21,586 -
WCL-7505FT
10
7.5
380V
42.6 - 29.5
1200
2 1/2 x 2
24,343 -
WCL-11005FT
15
11
380V
53.5 - 34.2
1200
2 1/2 x 2
28,758 -
WCL-15005FT
20
15
380V
62 - 32
500 - 1500
2 1/2 x 2
45,689 -
WCLL-5505FT
7.5
5.5
380V
20.7 - 12.3
800 - 2000
3 x 2 1/2
24,867 -
WCLL-7505FT
10
7.5
380V
26.8 - 17.8
800 - 2200
3 x 2 1/2
28,014 -
WCLL-11005FT
15
11
380V
38.4 - 24.3
1000 - 2200
3 x 2 1/2
34,776 -
WCLL-15005FT
20
15
380V
43.9 - 32.2
1000 - 2200
3 x 2 1/2
48,160 -
WCLL-18505FT
25
18.5
380V
54.6 - 34.2
800 - 2000
3 x 2 1/2
56,774 -
WCXL-11005FT
15
11
380V
28.3 - 14.1
1100 - 3200
4 x 3
36,117 -
WCXL-15005FT
20
15
380V
34.3 - 20.8
1300 - 3200
4 x 3
50,828 -
WCXL-18505FT
25
18.5
380V
39.9 - 23.4
1400 - 3400
4 x 3
58,272 -
